E N G I N E S :   PTP VHPD engine specifications

Engine dimensions
Number of Cylinders: 4
Bore: 80 mm
Stroke: 89.3 mm
Package Size: 661mm L 635mm W 635mm H
Displacement: 1795 cc
Compression Ratio: 11:1
Weight: 100kg

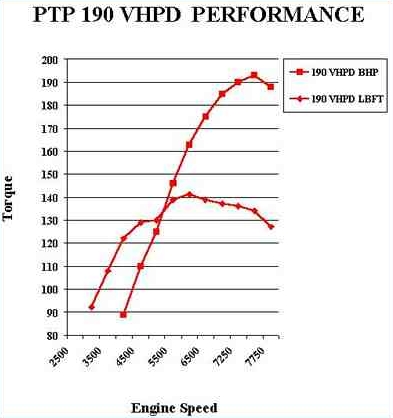

Power ratings (see above)
Max Power (Bhp): 190
Max Torque (Lbsft): 150

Specific fuel comsumption
At max power: 307 g/kwh
At max torque (5500 rpm): 281 g/kwh

Lubrication system
Oil specification: OW/40
Engine Oil capacity (litres): 4.5 litres wet sump installation
Oil pump type: Eccentric rotor pump
Filter type: Self contained cartridge type

Cooling system
System Volume: TBA
Coolant Pump type: Centrifugal
Flow (litres/min sec): 160
Thermostat: 88 oC
Coolant specification: 50% water /antifreeze Ethylene Glycol based - No methanol

Electrical system
Alternator type: Magnetti Marelli 11 5 I 85
output: 85 amp
Ignition system type: Single dry coil
Sparking plug type: RC 6YCC
Gap: .035

Electronic system
Engine Module type: MEMS 1.9 ECU Unique Motorsport Tune

Fuel System
Fuel pump type (MGF): AC 27 Gram
Pump pressure: 3.0
Fuel Spec: 95 RON (pump) Unleaded
Delivery (upper flow kg per hour): 126

Air Intake System
Air filter type: Foam Air Filter

(Data copied from the ptp-site, www.ptp-ltd.co.uk)
