D E T A I L S : BRAKES (MGF)

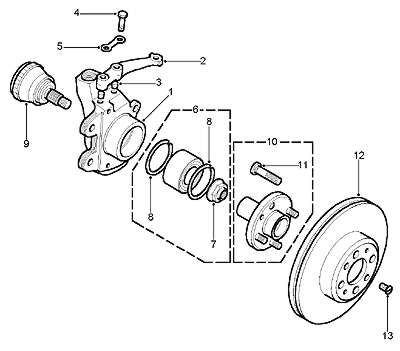

F r o n t
1.8
MPi
|
1.8
VVC
|
1. Hub
front suspension Antilock Brakes Lefthand - RFB100130 Righthand - RFB100120 except Antilock Brakes Lefthand - RUB10009 Righthand - RUB10008 |
1. Hub
front suspension Antilock Brakes Lefthand - RFB100130 Righthand - RFB100120 except Antilock Brakes Lefthand - RUB10009 Righthand - RUB10008 |
2. Lever-steering
swivel hub Antilock Brakes Lefthand To (V) YD 512342 - QJF100110 From (V) YD 512343 - QJF100210 Righthand To (V) YD 512342 - QJF100100 From (V) YD 512343 - QJF100200 except Antilock Brakes Lefthand To (V) YD 512443 - QJF100110 From (V) YD 512444 - QJF100210 Righthand To (V) YD 512443 - QJF100100 From (V) YD 512444 - QJF100200 |
2. Lever-steering
swivel hub Antilock Brakes Lefthand To (V) YD 512342 - QJF100110 From (V) YD 512343 - QJF100210 Righthand To (V) YD 512342 - QJF100100 From (V) YD 512343 - QJF100200 except Antilock Brakes Lefthand To (V) YD 512443 - QJF100110 From (V) YD 512444 - QJF100210 Righthand To (V) YD 512443 - QJF100100 From (V) YD 512444 - QJF100200 |
3. Dowel - FAM 6924 | 3. Dowel - FAM 6924 |
4. Screw - BX 110095M | 4. Screw - BX 110095M |
5. Washer - WB 112081 | 5. Washer - WB 112081 |
6. Kit-hub Bearing - GHK 1366 | 6. Kit-hub Bearing - GHK 1366 |
7. Nut-stake - front/rear suspension hub - EJP 7738 | 7. Nut-stake - front/rear suspension hub - EJP 7738 |
8. Circlip - ADU 9665 | 8. Circlip - ADU 9665 |
9. Axle-stub-hub
front suspension Antilock Brakes - RFG100070 except Antilock Brakes - RFG100090 |
9. Axle-stub-hub
front suspension Antilock Brakes - RFG100070 except Antilock Brakes - RFG100090 |
10. Flange Assembly-drive - NAM 6530 | 10. Flange Assembly-drive - NAM 6530 |
11. Stud - FAM 8419 | 11. Stud - FAM 8419 |
12. Disc-vented Brake - GBD90607 | 12. Disc-vented Brake - GBD90607 |
13. Screw - brake disc to drive flange - SF 106161 |
13. Screw - brake disc to drive flange - SF 106161 |

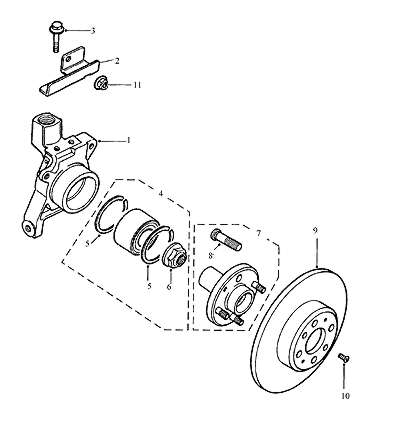

R e a r
1.8
MPi
|
1.8
VVC
|
1. Hub rear | 1. Hub rear |
2. Bracket anti-roll bar mounting rear suspension | 2. Bracket anti-roll bar mounting rear suspension |
3. Screw - FS 110251 | 3. Screw - FS 110251 |
4. Kit-hub bearing - GHK 1366 | 4. Kit-hub bearing - GHK 1366 |
5. Circlip - ADU 9665 | 5. Circlip - ADU 9665 |
6. Nut-stake - front/rear suspension hub - EJP 7738 | 6. Nut-stake - front/rear suspension hub - EJP 7738 |
7. Flange assembly-drive - NAM 6530 | 7. Flange assembly-drive - NAM 6530 |
8. Stud - FAM 8419 | 8. Stud - FAM 8419 |
9. Disc-solid brake - GBD 90842 | 9. Disc-solid brake - GBD 90842 |
10. Screw - brake disc to flange - SF 106161 | 10. Screw - brake disc to flange - SF 106161 |
11. Locknut - FN 110041 | 11. Locknut - FN 110041 |
